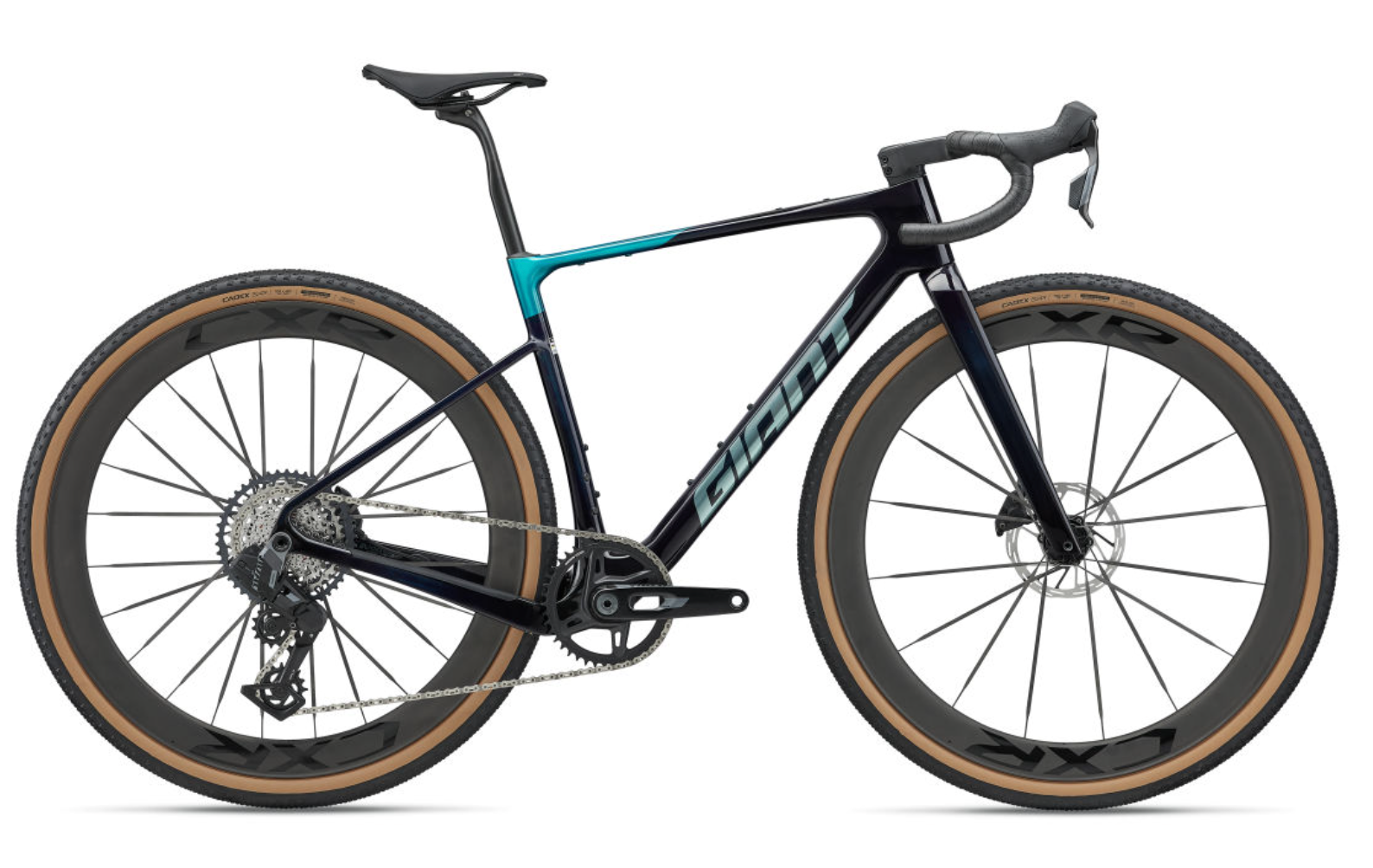

2027 Giant Revolt Advanced SL 2 - Deep Lagoon
The new Revolt Advanced SL Frameset delivers the perfect blend of aerodynamic efficiency, low weight, and precise handling. Developed for elite gravel competition, it's engineered to help you carry speed further, stay composed on rough terrain, and create a race-ready machine tailored to your exact needs.
Key Performance Factors
ULTRALIGHT EFFICIENCY
The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro.
AERO SPEED OVER DISTANCE
Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimised for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.
RACE-TUNED GEOMETRY
With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimised for 45mm tyres with 53mm maximum clearance, it’s purpose-built for modern gravel racing.
GEOMETRY
| S | M | ML | L | XL | |
|---|---|---|---|---|---|
| A Seat Tube Length (mm) | 450 | 470 | 490 | 510 | 530 |
| B Seat Tube Angle | 74.5° | 74.5° | 74.0° | 74.0° | 74.0° |
| C Top Tube Length (mm) | 540 | 550 | 565 | 580 | 590 |
| D Head Tube Length (mm) | 100 | 120 | 135 | 155 | 180 |
| E Head Tube Angle | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 |
| G Trail (mm) | 74 | 71 | 67 | 67 | 67 |
| H Wheelbase (mm) | 1027 | 1033 | 1039 | 1055 | 1066 |
| I Chain Stay Length (mm) | 433 | 433 | 433 | 433 | 433 |
| J Bottom Bracket Drop (mm) | 80 | 80 | 80 | 80 | 80 |
| K Stack (mm) | 536 | 557 | 573 | 592 | 616 |
| L Reach (mm) | 391 | 395 | 401 | 410 | 413 |
| M Stand Over Height (mm) | 743 | 762 | 779 | 798 | 818 |
| O Stem Length (mm) | 80 | 90 | 100 | 100 | 110 |
| P Crank Length (mm) | 165 | 170 | 170 | 172.5 | 172.5 |
| Q Wheel Size | 700C | 700C | 700C | 700C | 700C |
SPECIFICATIONS
| Model Name | Revolt Advanced SL 2 |
| Colours | Deep Lagoon |
| Sizes | XS, S, M, M/L, L, XL |
| Frame | Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout |
| Fork | Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact SLR XR Integrated XS:70x38/42cm, S:80x38/42cm, M:90x40/44cm, M/L:100x40/44cm, L:100x40/44cm, XL:110x42/46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact SLR XR Integrated XS:70, S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm |
| Seatpost | Giant Contact SLR XR D-Fuse, composite, 20mm offset |
| Saddle | Giant Grit SL |
| Pedals | N/A |
| Shifters | SRAM Rival AXS HRD, ED-Rival-E1, 1x13 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Rival AXS, RD-Rival-E-E1 |
| Brakes | SRAM Rival AXS HRD, ED-Rival-E1, SRAM PaceLine rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM Rival AXS HRD, ED-Rival-E1 |
| Cassette | SRAM Rival XG-1351-E1, 13-speed, 10-46 |
| Chain | SRAM Rival-E1 |
| Crankset | SRAM Rival XPLR AXS with spindle power meter, 42t XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant CXR 0 WheelSystem, hookless, carbon [F] 50mm, [R] 50mm |
| Hubs | [F] Giant Low Friction Aero Hub, Center Lock [R] Giant Low Friction Aero Hub, 60-tooth ratchet driver, Center Lock |
| Spokes | Aero Bladed Carbon Spoke |
| Tyres | CADEX GXR, 700x45c, tubeless, folding |
| Extras | Tubeless prepared, 53mm max tyre size, 54t max chainring size, computer mount, chain guide |
