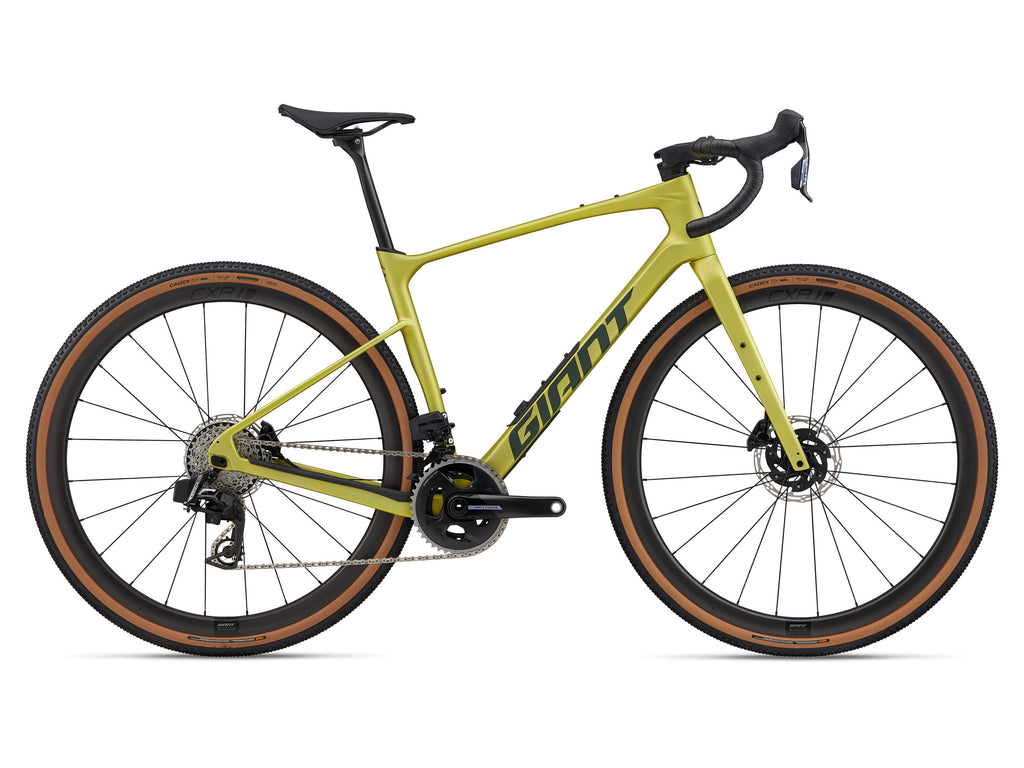

2026 Giant Revolt Advanced Pro 0 - Cyber Lime
Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.
Key Performance Factors
FAST AND VERSATILE

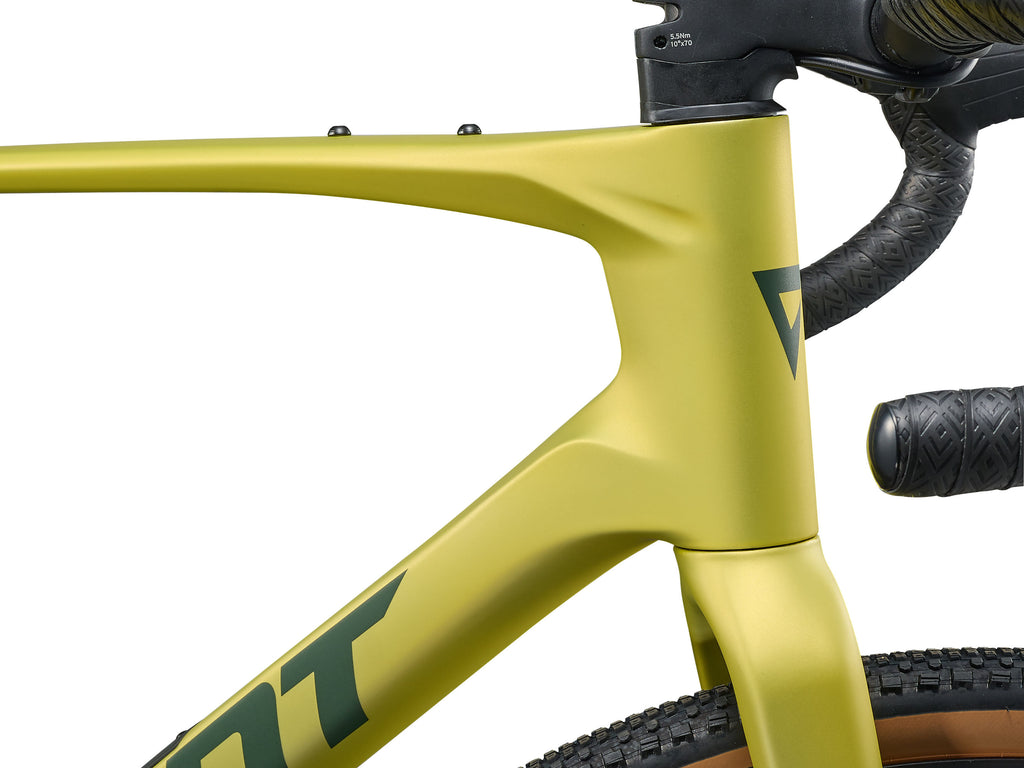

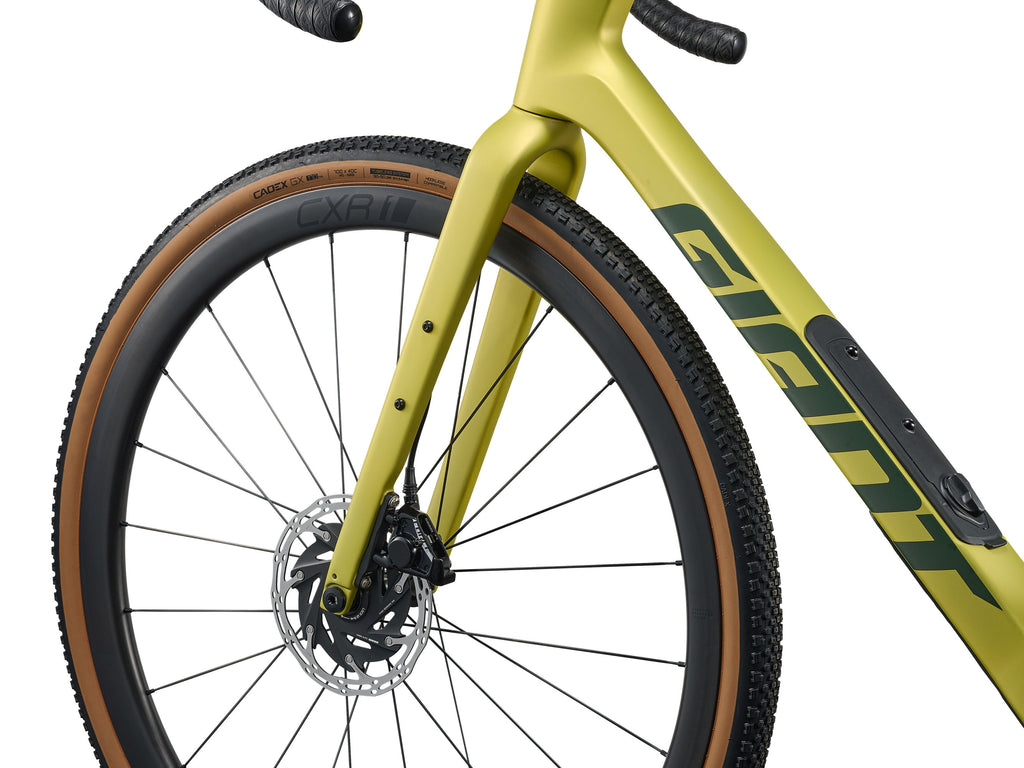

Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
TUNED COMPLIANCE

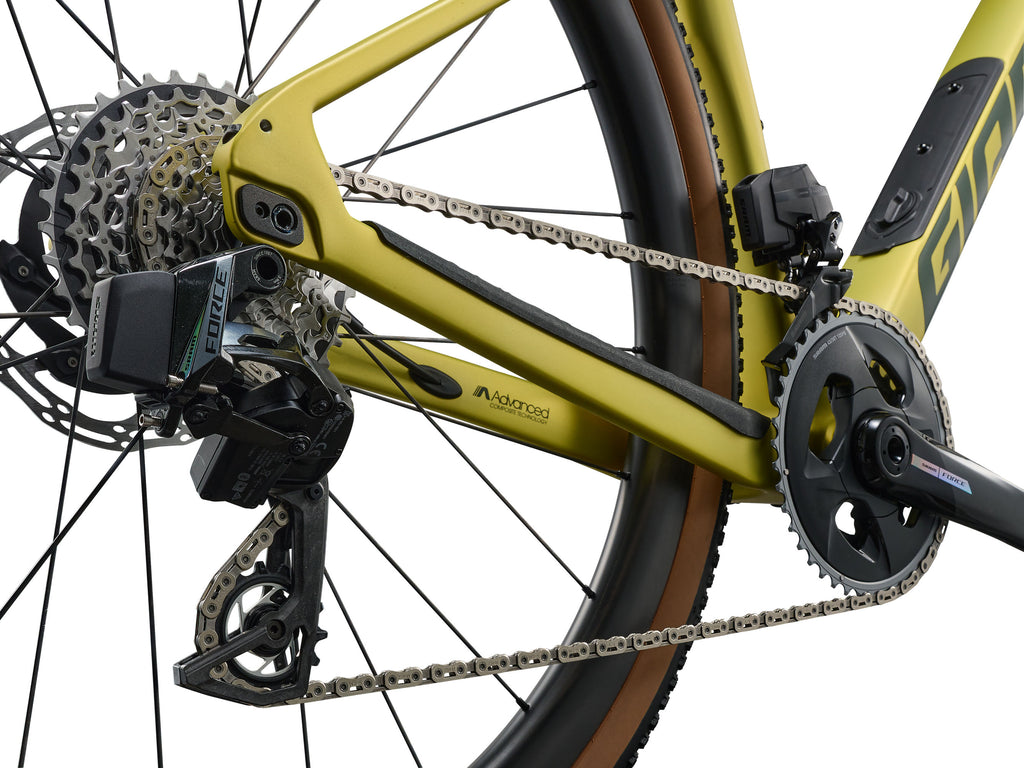

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimising fatigue over long distances.
SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
Geometry
| Revolt Advanced Pro / Revolt Advanced | XS RC425 | RC435 |
S RC425 | RC435 |
M RC425 | RC435 |
M/L RC425 | RC435 |
L RC425 | RC435 |
XL RC425 | RC435 |
| Seat tube length | 430 | 450 | 470 | 490 | 510 | 530 |
| Seat tube angle (degrees) | 74.00 | 73.50 | 73.50 | 73.00 | 73.00 | 73.00 |
| Top tube length | 540 | 550 | 560 | 575 | 585 | 600 |
| Head tube length | 125 | 135 | 150 | 165 | 180 | 195 |
| Head tube angle (degrees) | 70.00 | 71.00 | 71.50 | 72.00 | 72.00 | 72.00 |
| Fork rake | 50 | 50 | 50 | 50 | 50 | 50 |
| Trail | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| Wheelbase | 1024 | 1034 | 1020 | 1030 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1056 | 1066 |
| Chain stay length | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
| Bottom bracket drop | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| Stack | 556 | 570 | 586 | 602 | 616 | 630 |
| Reach | 381 | 381 | 387 | 391 | 397 | 407 |
| Stand over height | 724 | 731 | 740 | 747 | 757 | 764 | 774 | 780 | 791 | 797 | 807 | 814 |
| Handlebar width | 420 | 420 | 440 | 440 | 460 | 460 |
| Stem length | 50 | 60 | 70 | 80 | 80 | 90 |
| Crank length | 170.0 | 170.0 | 172.5 | 172.5 | 175.0 | 175.0 |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C |
Specs
| Model Name | Revolt Advanced Pro 0 |
| Colours | Cyber Lime |
| Sizes | XS, S, M, M/L, L, XL |
| Frame | Advanced-Grade Composite, 12x142mm thru-axle, flat mount disc, Flip Chip dropout, integrated downtube storage |
| Fork | Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse SLR, composite, -5/+15mm offset |
| Saddle | Giant Grit SL |
| Pedals | N/A |
| Shifters | SRAM Force AXS HRD, ED-Force-E1 |
| Front Derailleur | SRAM Force AXS Wide D2 |
| Rear Derailleur | SRAM Force AXS, RD-Force-E-E1 |
| Brakes | SRAM Force AXS HRD, ED-Force-E1, SRAM PaceLine X rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM Force AXS HRD, ED-Force-E1 |
| Cassette | SRAM Force E1 XG-1270, 12-speed, 10-36 |
| Chain | SRAM Force-E1, 12-speed |
| Crankset | SRAM Force D2 Wide DUB , 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | SRAM DUB, Press Fit |
| Rims | Giant CXR 1 Carbon Disc WheelSystem |
| Hubs | [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | CADEX GX, 700x40c, tubeless |
| Extras | Tubeless prepared, 53mm max tyre size in "long" Flip Chip position, 45mm max tyre size in "short" Flip Chip position, In frame storage bag |
