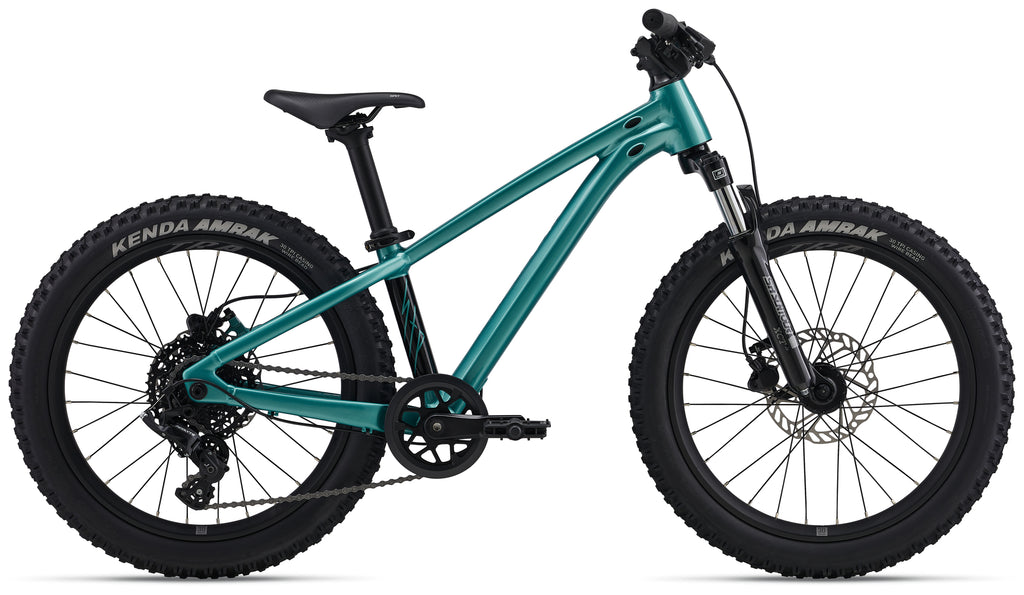

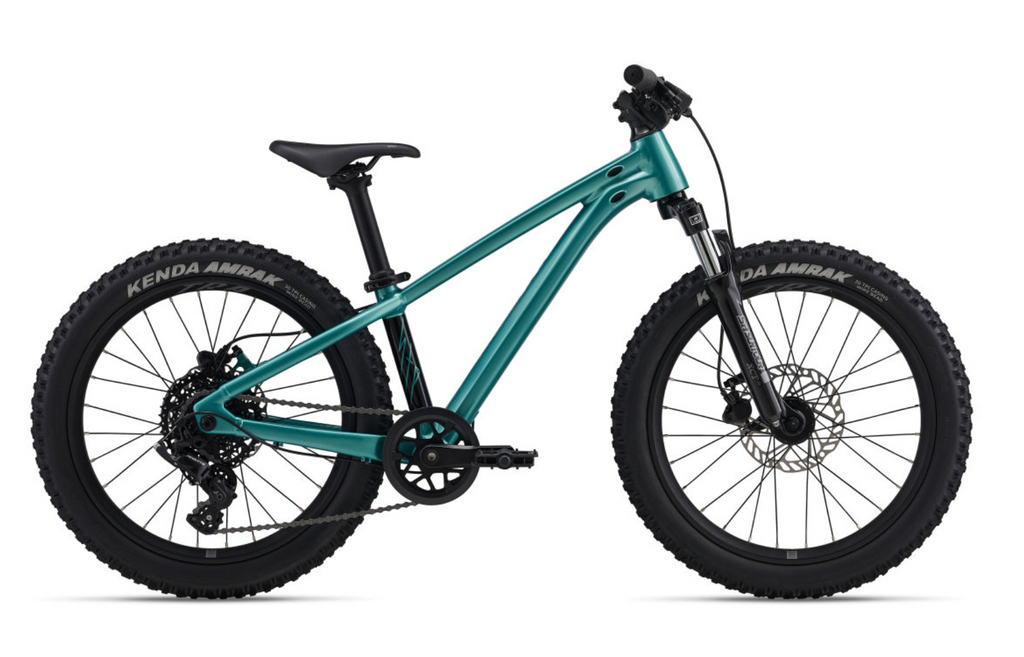

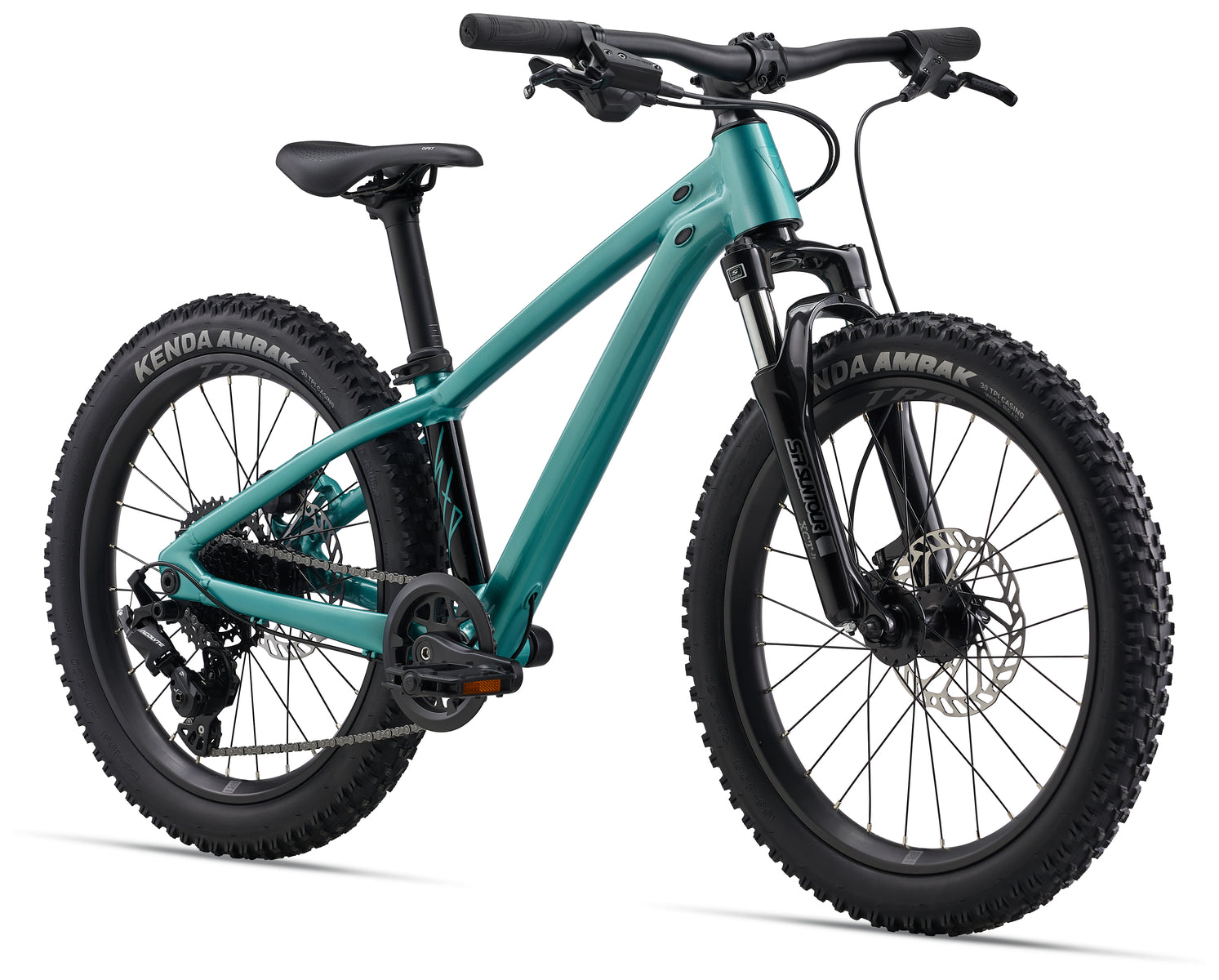

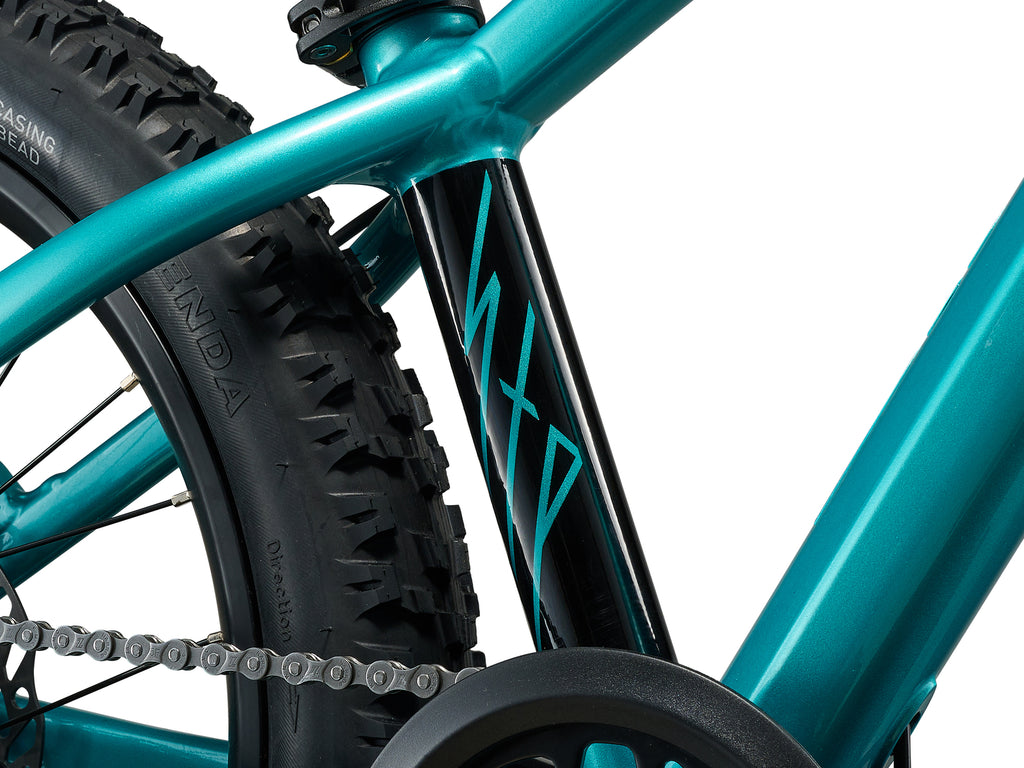

2026 Giant STP 20 FS One Size Teal
Geometry
| One Size | |
| A Seat Tube Length (mm) | 265 |
| A1 Seat Post Insertion Depth (mm) | 200 |
| B Seat Tube Angle | 73.0° |
| C Top Tube Length (mm) | 444 |
| D Head Tube Length (mm) | 90 |
| E Head Tube Angle | 67.0° |
| F Fork Rake (mm) | 40 |
| G Trail (mm) | 91 |
| H Wheelbase (mm) | 821 |
| I Chain Stay Length (mm) | 323 |
| J Bottom Bracket Drop (mm) | 50 |
| K Stack (mm) | 447 |
| L Reach (mm) | 301 |
| M Stand Over Height (mm) | 536 |
| O Stem Length (mm) | 40 |
| P Crank Length (mm) | 105 |
Specs
| Model Name | STP 20 FS |
| Colours | Teal |
| Sizes | One size |
| Frame | ALUXX-Grade aluminium, 12x142mm thru-axle |

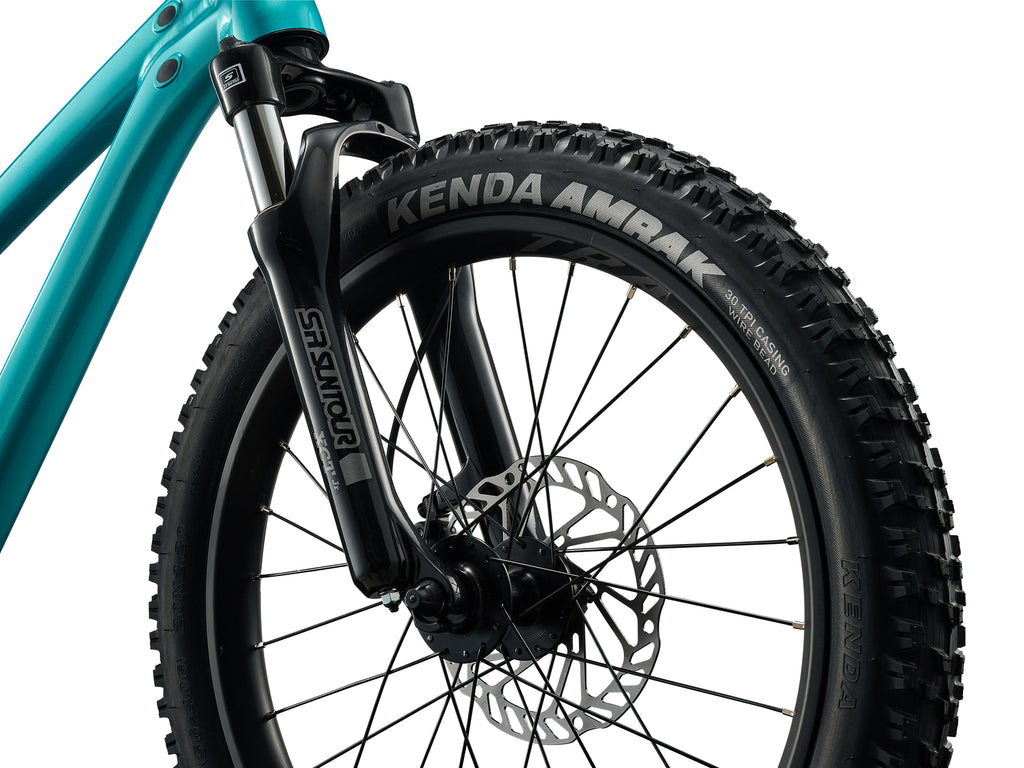

| Fork | SR XCT JR L 20" coil spring, 63mm travel, 9x100mm QR |
| Shock | N/A |

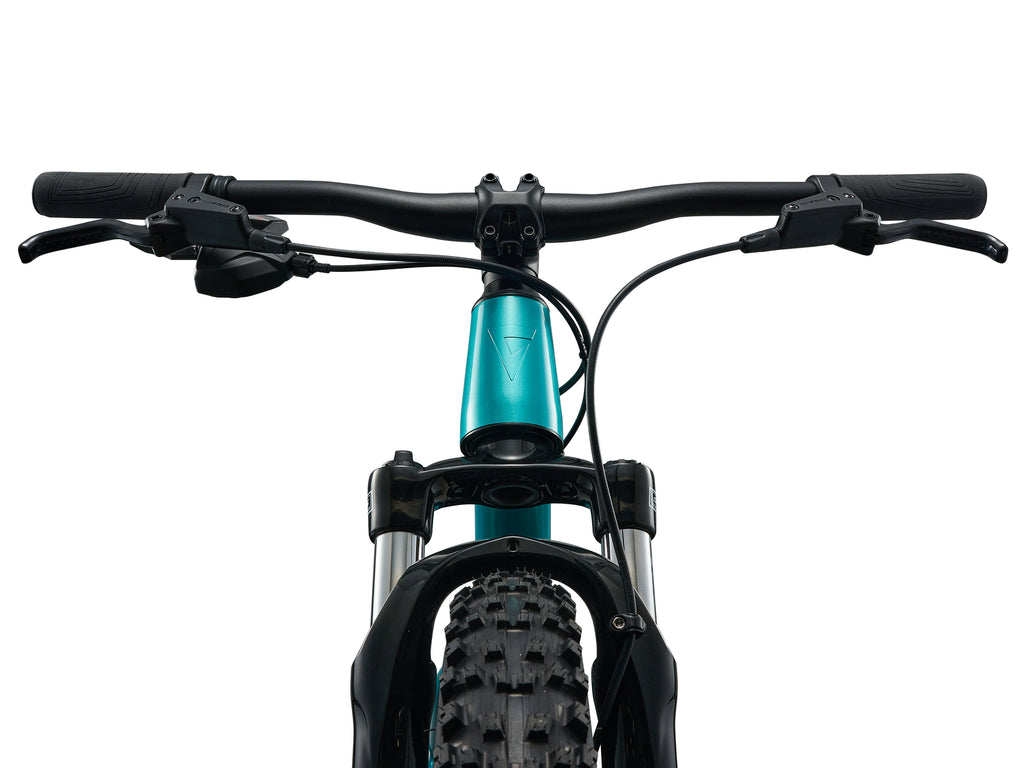

| Handlebar | Giant Sport, alloy, 31.8mm |
| Grips | Giant Junior |
| Stem | Forged alloy, 0-degree |
| Seatpost | Alloy, two-bolt, 30.9mm |

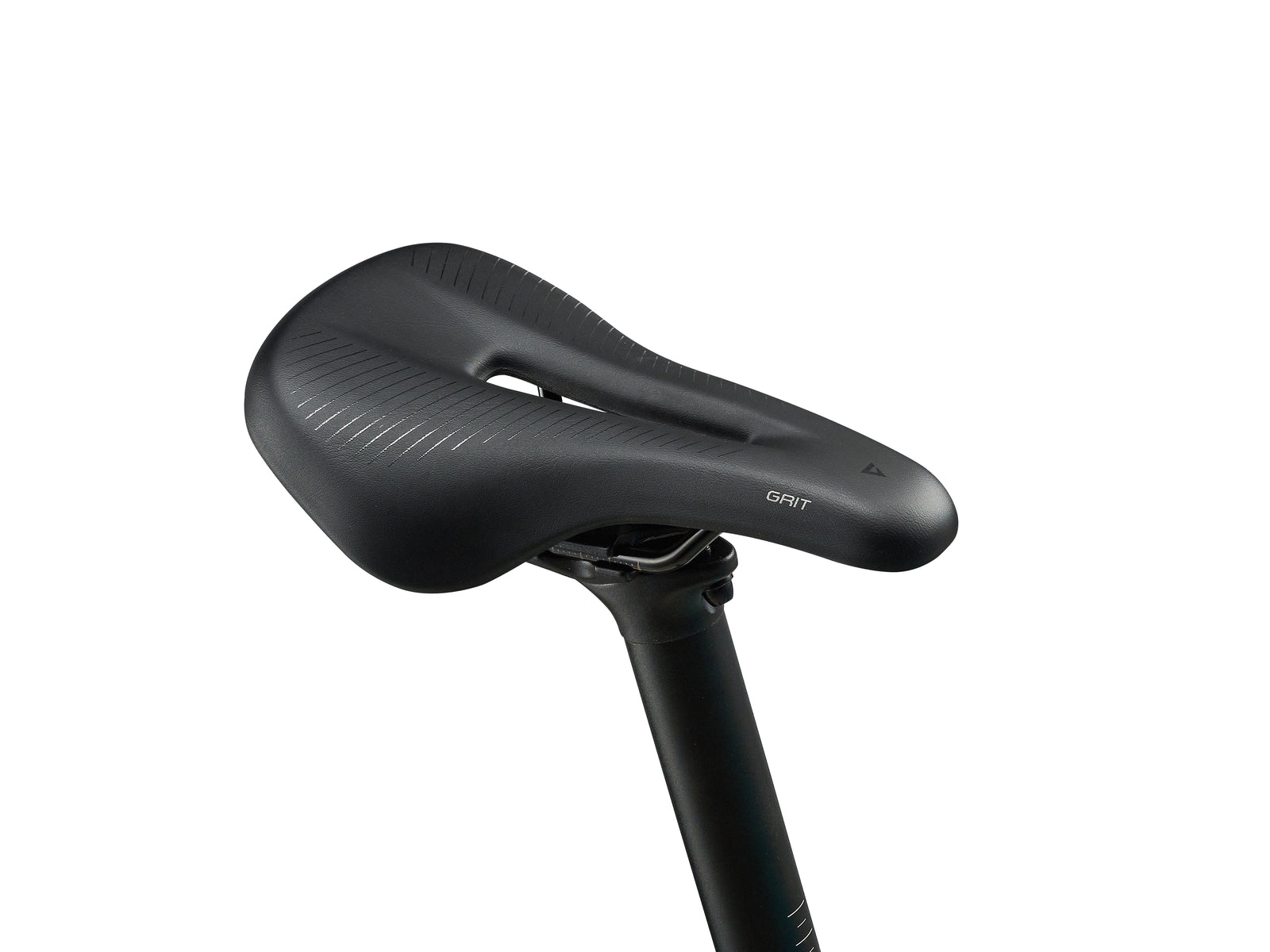

| Saddle | Giant Grit Core |
| Pedals | Platform |

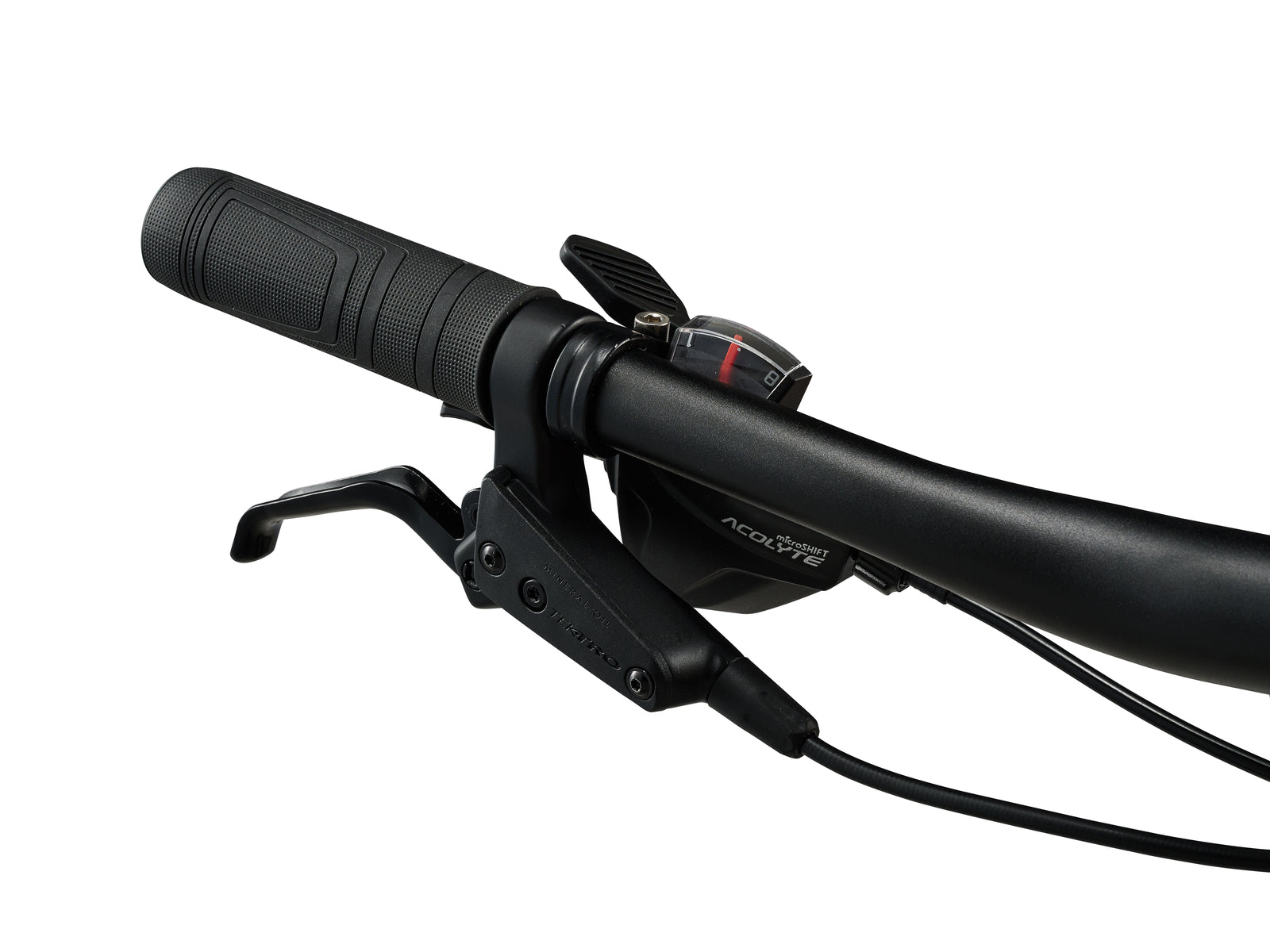

| Shifters | microSHIFT Acolyte, 1x8 |
| Front Derailleur | N/A |

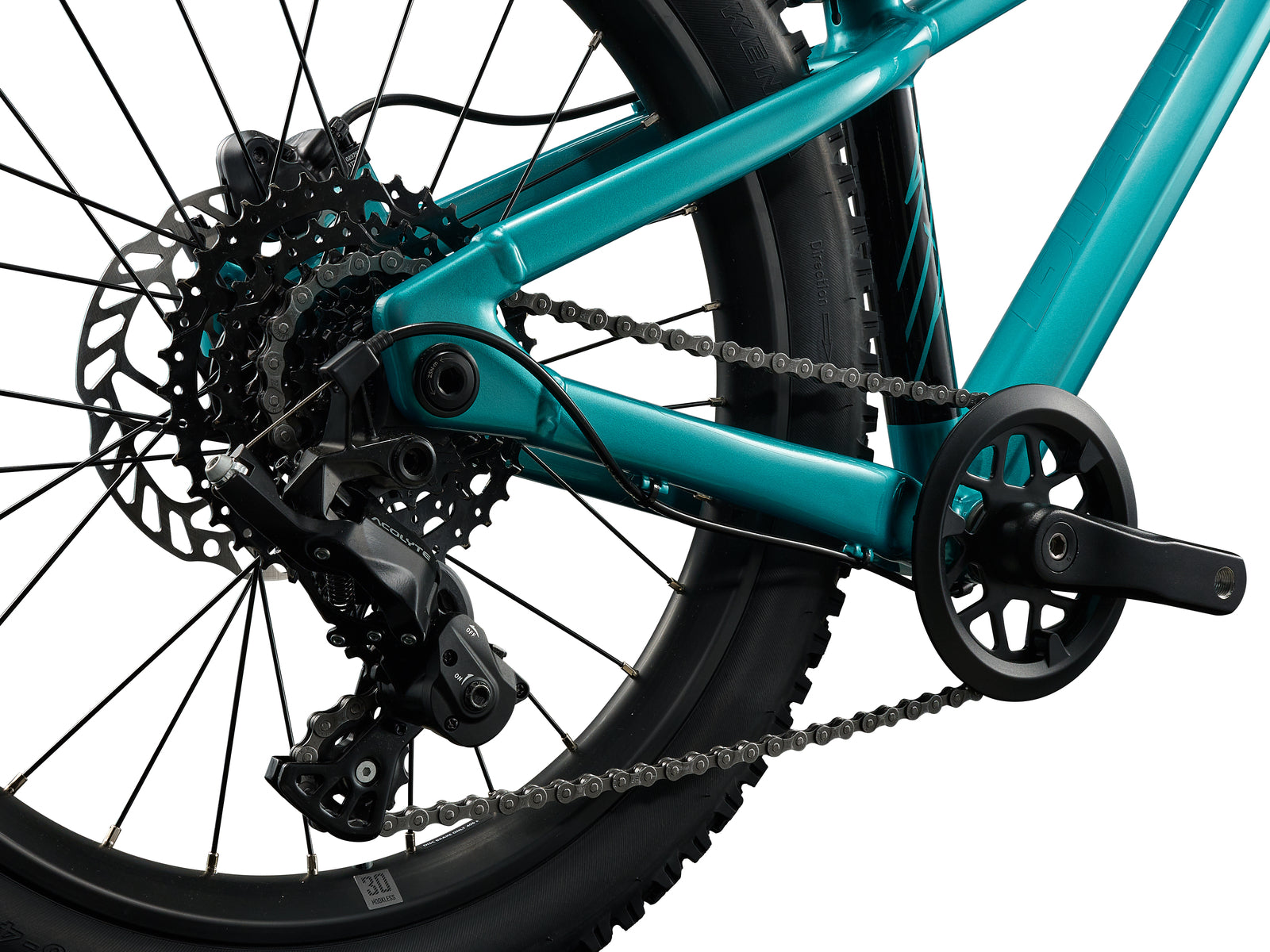

| Rear Derailleur | microSHIFT Acolyte, 1x8 |
| Brakes | Tektro HD-J2820, hydraulic [F]160mm, [R]160mm rotors |
| Brake Levers | Tektro HD-J2820 |
| Cassette | Shimano HG83, 11x38 |
| Chain | KMC Z8.1 |
| Crankset | Prowheel Forged, 30t, 105mm |
| Bottom Bracket | Cartridge threaded |
| Rims | Giant TRA 2 Hookless Tubeless ready Alloy 30mm inner width |
| Hubs | [F] Giant Tracker, thru-axle, 6-bolt [R] Giant Tracker thru-axle, 6-bolt, HG driver body |
| Spokes | Stainless, 14g |
| Tyres | Kenda Amrak, 20x2.2" |
| Extras | N/A |
