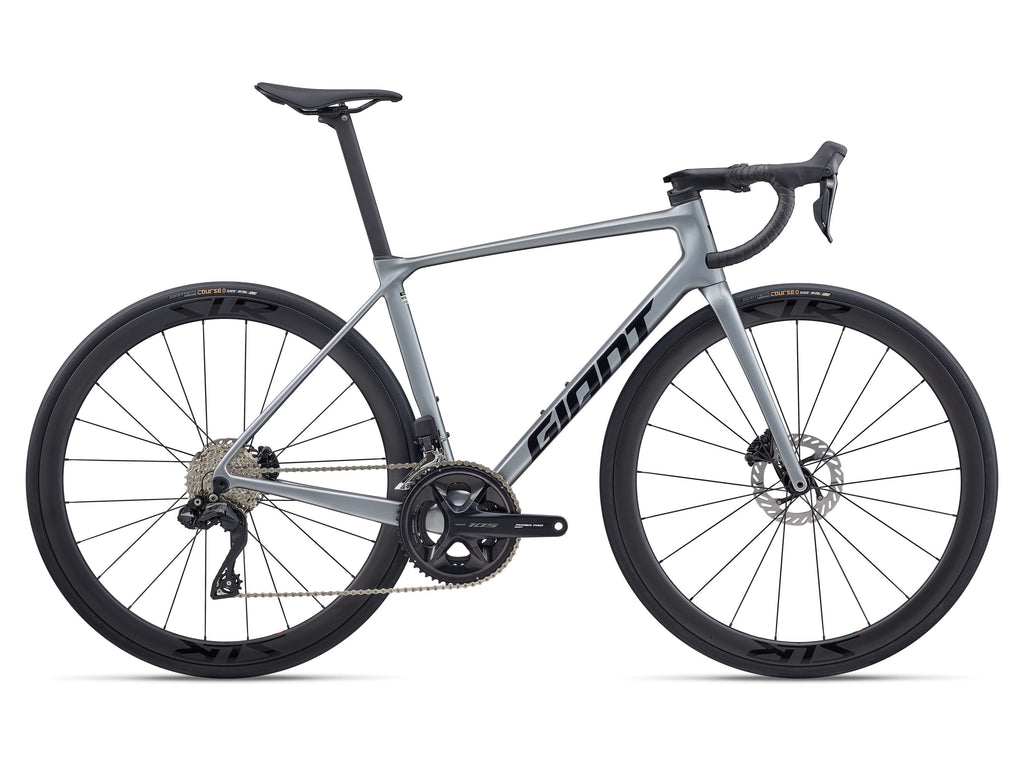

2026 Giant TCR Advanced Pro 1 Di2 - Tech Silver
Superlight, ultra-efficient and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner and descend with astonishing speed and sublime road handling.
Key Performance Factors
SYSTEM OPTIMISATION

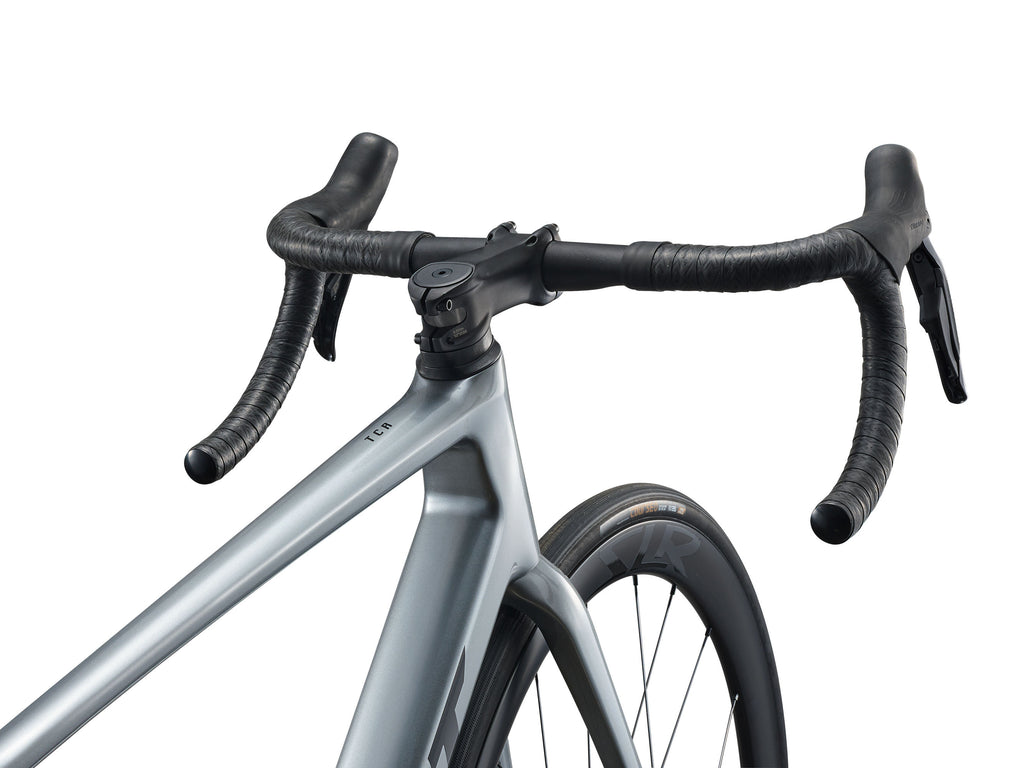

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS
All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modelling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.
Geometry
| TCR Advanced Pro TCR Advanced |
XS | S | M | ML | L | XL | |
| A | Seat tube length | 425 | 445 | 470 | 500 | 530 | 560 |
| B | Seat tube angle (degrees) | 74.50 | 74.00 | 73.50 | 73.00 | 73.00 | 72.50 |
| C | Top tube length | 520 | 535 | 550 | 565 | 580 | 600 |
| D | Head tube length | 120 | 130 | 145 | 165 | 185 | 200 |
| E | Head tube angle (degrees) | 71.00 | 72.25 | 73.00 | 73.00 | 73.00 | 73.00 |
| F | Fork rake | 45 | 45 | 45 | 45 | 45 | 45 |
| G | Trail | 72 | 64 | 59 | 59 | 59 | 59 |
| H | Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | Chain stay length | 405 | 405 | 405 | 405 | 405 | 405 |
| J | Bottom bracket drop | 72 | 69.5 | 69.5 | 67 | 67 | 67 |
| K | Stack | 517 | 528 | 545 | 562 | 581 | 596 |
| L | Reach | 376 | 383 | 388 | 393 | 402 | 412 |
| M | Stand over height | 703 | 722 | 743 | 771 | 798 | 822 |
| N | Handlebar width | 400 | 400 | 420 | 420 | 440 | 440 |
| O | Stem length | 80 | 90 | 100 | 110 | 110 | 120 |
| P | Crank length | 170.0 | 170.0 | 172.5 | 172.5 | 175.0 | 175.0 |
| Q | Wheel size | 700C | 700C | 700C | 700C | 700C | 700C |
Specs
| Model Name | TCR Advanced Pro 1 Di2 |
| Colours | Tech Silver |
| Sizes | XS, S, M, M/L, L, XL |

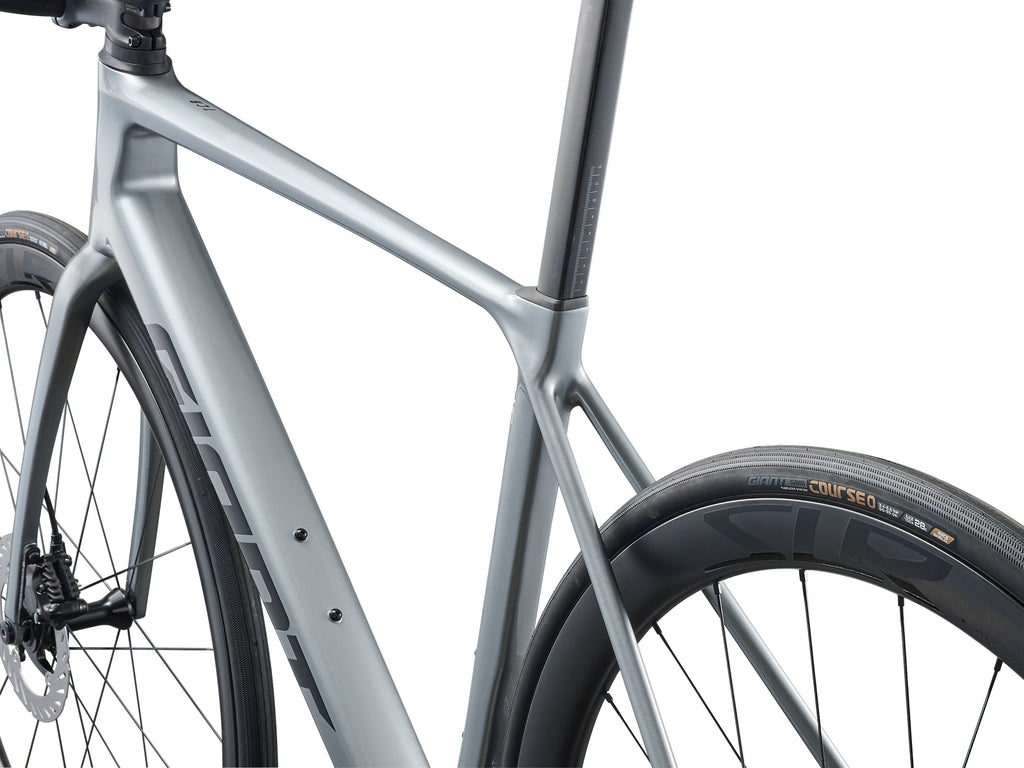

| Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc |

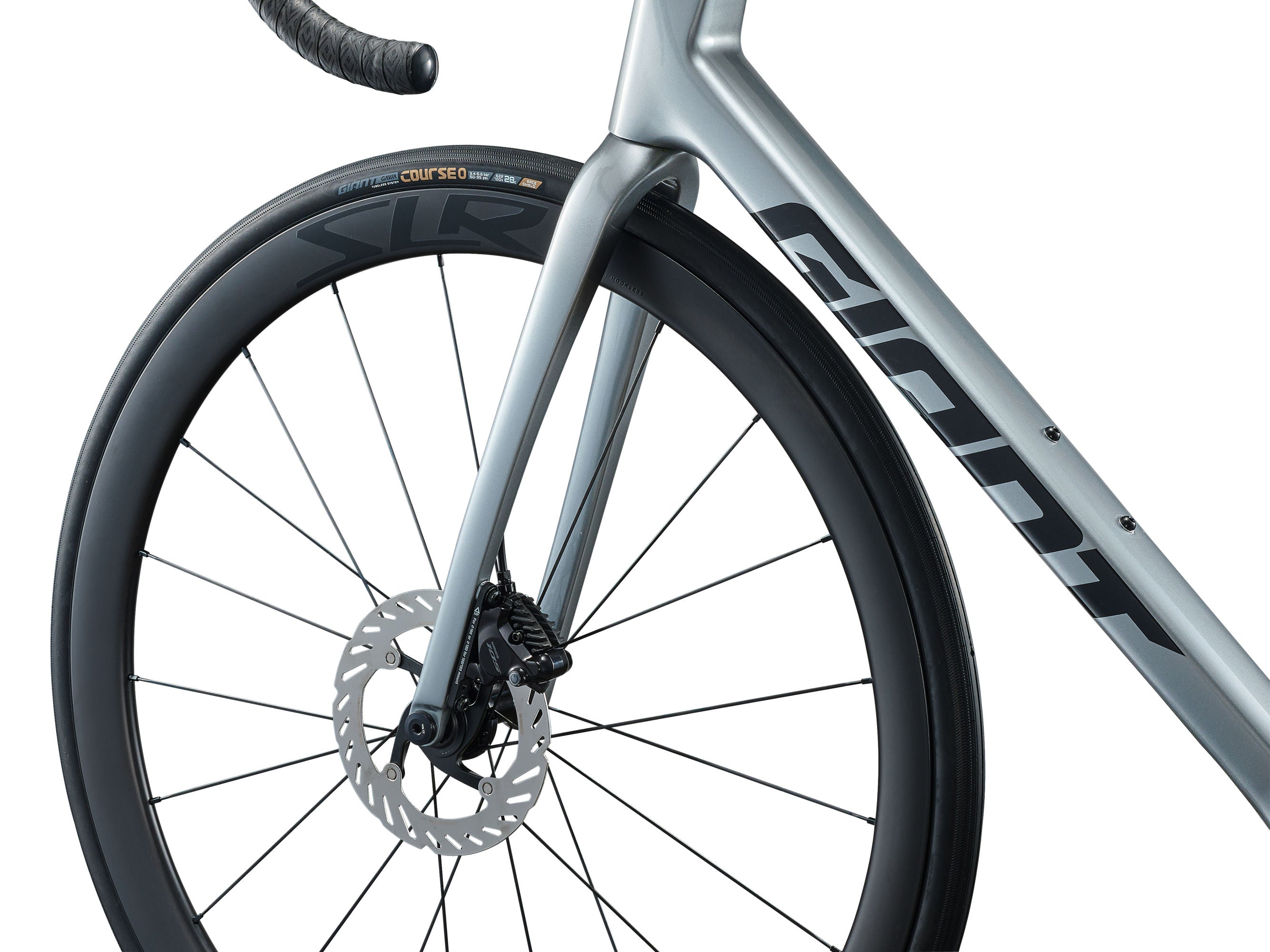

| Fork | Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact SL XS:37/42cm, S:37/42cm, M:39/44cm, M/L:39/44cm, L:39/44cm, XL:39/44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | N/A |
| Shifters | Shimano 105 Di2 ST-R7170 |
| Front Derailleur | Shimano 105 Di2 FD-R7150 |
| Rear Derailleur | Shimano 105 Di2 RD-R7150 |

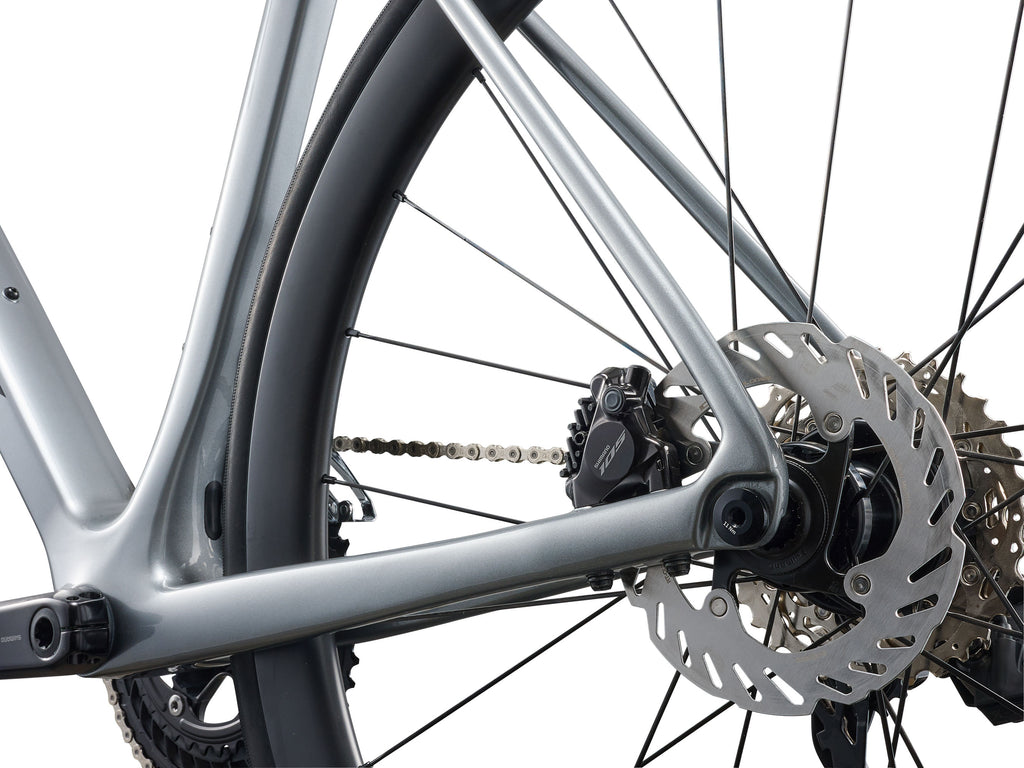

| Brakes | Shimano 105 Di2 hydraulic, Shimano RT-CL700 rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 Di2 |
| Cassette | Shimano 105, 12-speed, 11x34 |
| Chain | KMC X12L-1 |

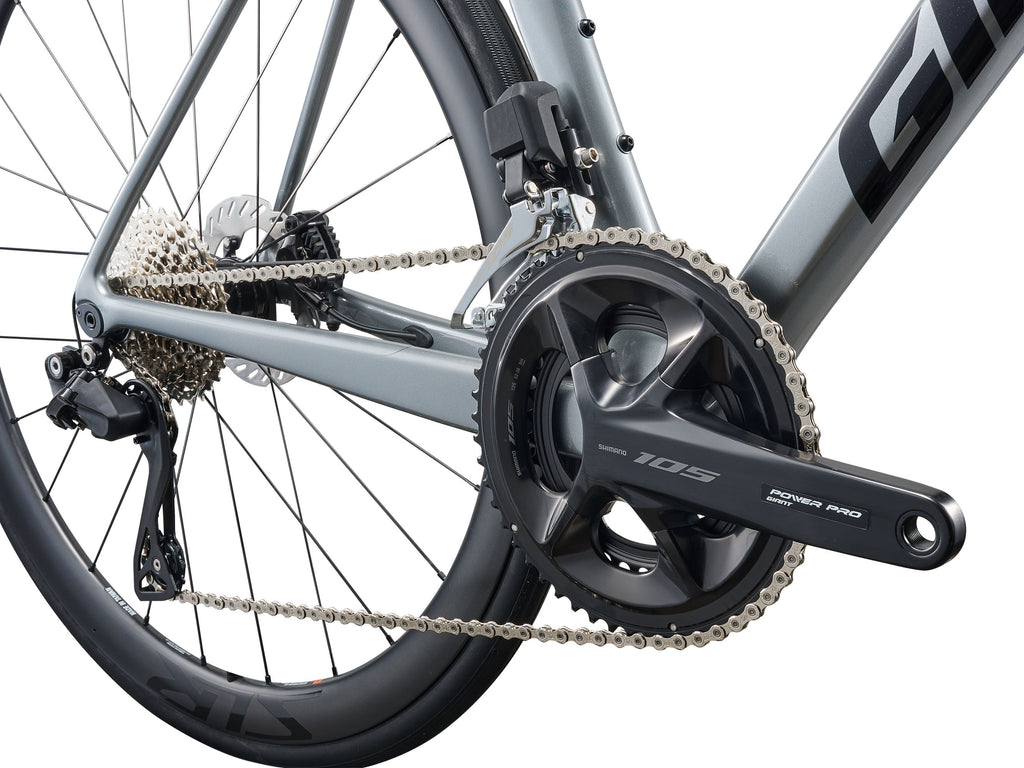

| Crankset | Shimano 105, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant SLR 1 40 WheelSystem, [F]40mm, [R]40mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | Giant Gavia Course 0, tubeless, 700x28c (28mm), folding |
| Extras | Computer mount, tubeless prepared, 33mm max tyre size |
